Seawall Reinforcement in Palmetto Point, Florida - Seawall Savers of SWFL Palmetto Point Seawall Reinforcement

ClientHomeowner in Palmetto Point

LocationPalmetto Point, FL

Date09/22/2025

Engineered Repair Using Pipe Pilings & Vinyl King Piles | Seawall Savers™

In the waterfront community of Palmetto Point, Florida, aging seawalls face daily punishment from tides, storms, saltwater corrosion, and fluctuating groundwater. When a seawall cap begins to fail, the structural stability of the entire wall is at risk.

In this case study, Seawall Savers™ was called in to restore a new failing seawall using a durable solution: steel pipe pilings, Vinyl King Piles, and a new reinforced marine-grade concrete cap.

Our goal? Extend the life of the seawall, restore full stability, and protect the client’s property from erosion and collapse—without full seawall replacement.

Location: Palmetto Point, Florida

Waterfront residential property
Aging concrete seawall (~30 years old)
Tidal fluctuations and soil saturation accelerating wear
Cap was sagging, cracking, and leaking water behind the wall

The Problem: Structural Seawall Failure & Soil Movement

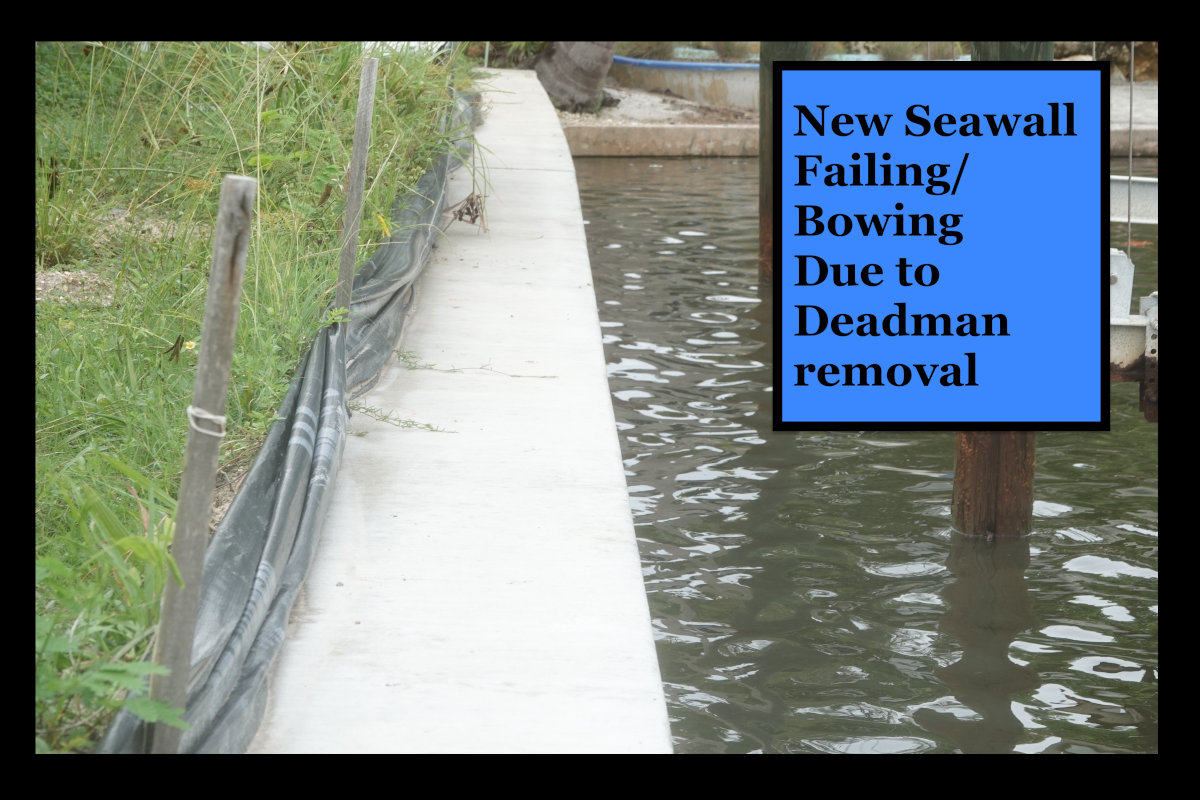

The new seawall begin to fail after a pool contractor removed the original deadman used to keep the new seawall in alignment. Unfortunately, this occurs sometimes during new pool installations along with heavy equipment getting to close to the seawall.

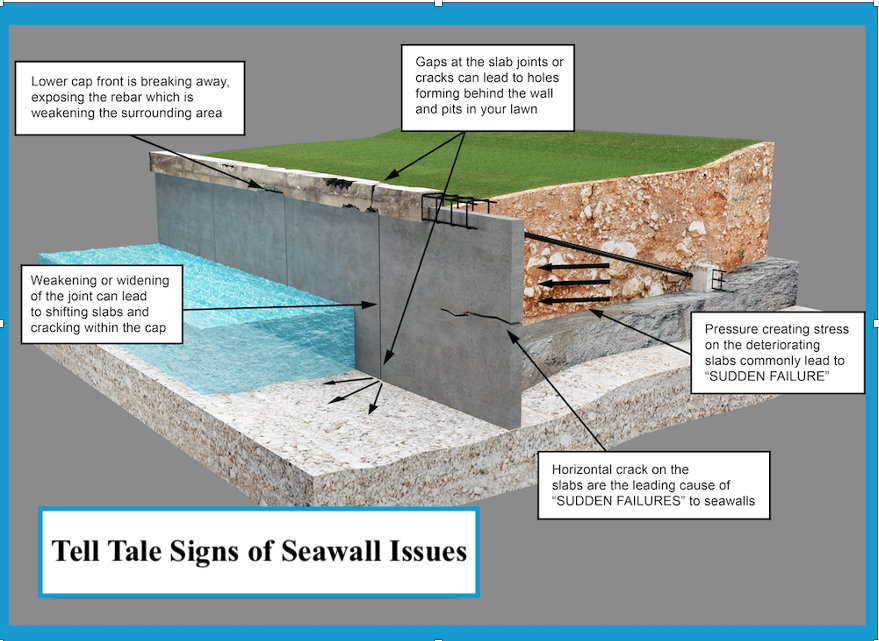

During our inspection, the following issues were identified:

Cracks in concrete cap, exposing rebar to saltwater corrosion
Soil loss behind the wall, leading to depressions and voids near landscaping
Rotation of seawall panels, indicating uneven load distribution
Inadequate drainage, allowing hydrostatic pressure to build up behind the wall

Why this matters:
The seawall cap is the tension ring that holds the entire system together. Once it begins to fail, the risk of panel separation, erosion, and total structural collapse rises significantly.

Our Solution: Structural Reinforcement Without Full Replacement

Seawall Savers™ implemented a multi-phase reinforcement system tailored to the soil and tidal conditions in Palmetto Point.

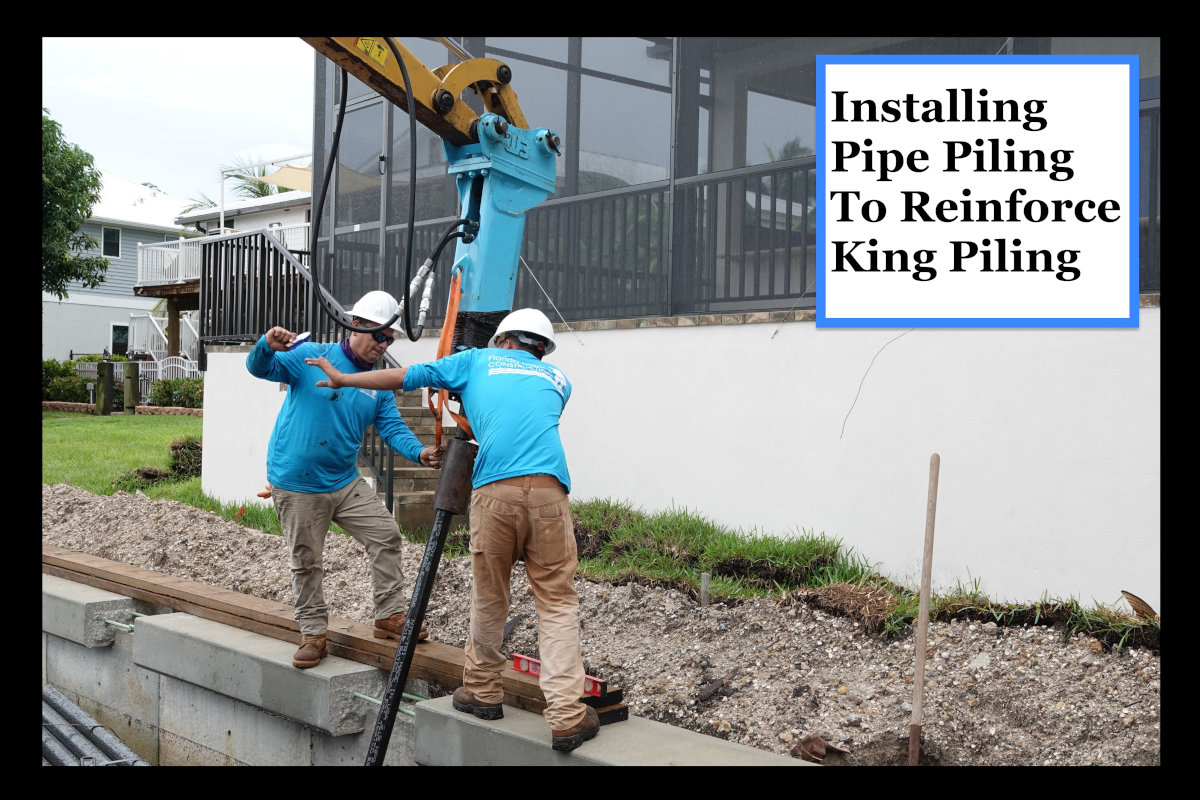

Step 1: Install Deep Pipe Pilings

Steel pipe pilings were driven into load-bearing strata ( 35 ft.) beneath the seawall
Pilings act as vertical supports to carry the weight of the new cap and reduce movement
Each piling was precisely spaced based on structural load calculations

Step 2: Add Vinyl King Piles (Trueline)

Vinyl King Piles were installed between wall sections to provide lateral stability
These high-strength vinyl components resist corrosion and wave impact
They realign and reinforce the existing seawall panels to reduce flexing and separation

Step 3: Pour New Reinforced Seawall Cap and King Piling

A custom-formed marine-grade concrete cap was poured with embedded epoxy-coated rebar
Cap was tied directly into the pipe pilings and king piles for maximum strength
Non-slip finish applied for safety and visual improvement

Step 4: Improve Drainage & Soil Backfill

Soil behind the wall was excavated and replaced with compacted, graded backfill
Jet Filters™ were added to promote controlled drainage and eliminate back pressure
Final grading was done to divert surface water away from the wall

Results: Structural Stability Restored

Repair Outcome	Result
Seawall cap stability	Fully restored, no movement or cracking
Soil loss	Stopped with improved drainage and compaction
Tidal pressure resistance	Increased via pipe piling support
Wall panel alignment	Corrected with Vinyl King Piles
Drainage issues	Resolved using Jet Filters™
Long-term durability	Expected 30+ year service life

What the Homeowner Had to Say:

“I was told I’d need a brand-new seawall, but Seawall Savers™ showed me a smarter solution. Their team was professional, fast, and the results are solid. No more sinkholes or cracks. I highly recommend them.”

Gary P. Homeowner, Palmetto Point

Why Palmetto Point Homeowners Choose Seawall Savers™

🔷 Local Expertise – We understand Palmetto Point’s tidal conditions, soil types, and saltwater risks
🔷 Licensed & Insured – Fully certified marine construction contractor in Florida
🔷 Engineered Solutions – Every project includes structural modeling and soil analysis
🔷 Eco-Friendly Methods – We prioritize clean water flow, sediment control, and minimal disruption
🔷 Cost-Effective Alternatives – We save your wall, saving you time and money

FAQ – Seawall Reinforcement in Florida

Can I replace just the seawall cap instead of the whole wall?

Yes. If the panels are intact, replacing or reinforcing the cap with proper support (like pipe pilings) is a cost-effective way to extend the wall’s life.

What are Vinyl King Piles and why use them?

Vinyl King Piles are lateral support posts made from corrosion-resistant vinyl. They’re ideal for Florida’s saltwater and offer long-term structural reinforcement.

What causes new seawalls to fail?

Common causes include improper installation, deadman/tieback removal during pool construction, and heavy equipment operating too close to new seawall.

How do pipe pilings help in seawall repair?

Pipe pilings act like deep foundations that support the wall and prevent settlement. They stabilize both vertical and horizontal forces on the structure.

What’s the expected life of a reinforced seawall cap system?

With proper materials and drainage, reinforced systems can last 30 to 40 years in Florida’s marine environment.
