Innovative Seawall Repair Solutions: A Case Study at Admiralty Villas on Manasota Key

ClientAdmiralty Villas
LocationManasota Key, Florida
Date09/12/2025

Seawall Erosion Challenges and Innovative Solutions

Discover how Seawall Savers™ tackled severe erosion issues at Admiralty Villas on Manasota Key using advanced seawall repair techniques. Learn about innovative solutions like Jet Filters and polyurethane foam grout that ensure long-lasting stability and minimal environmental disruption.

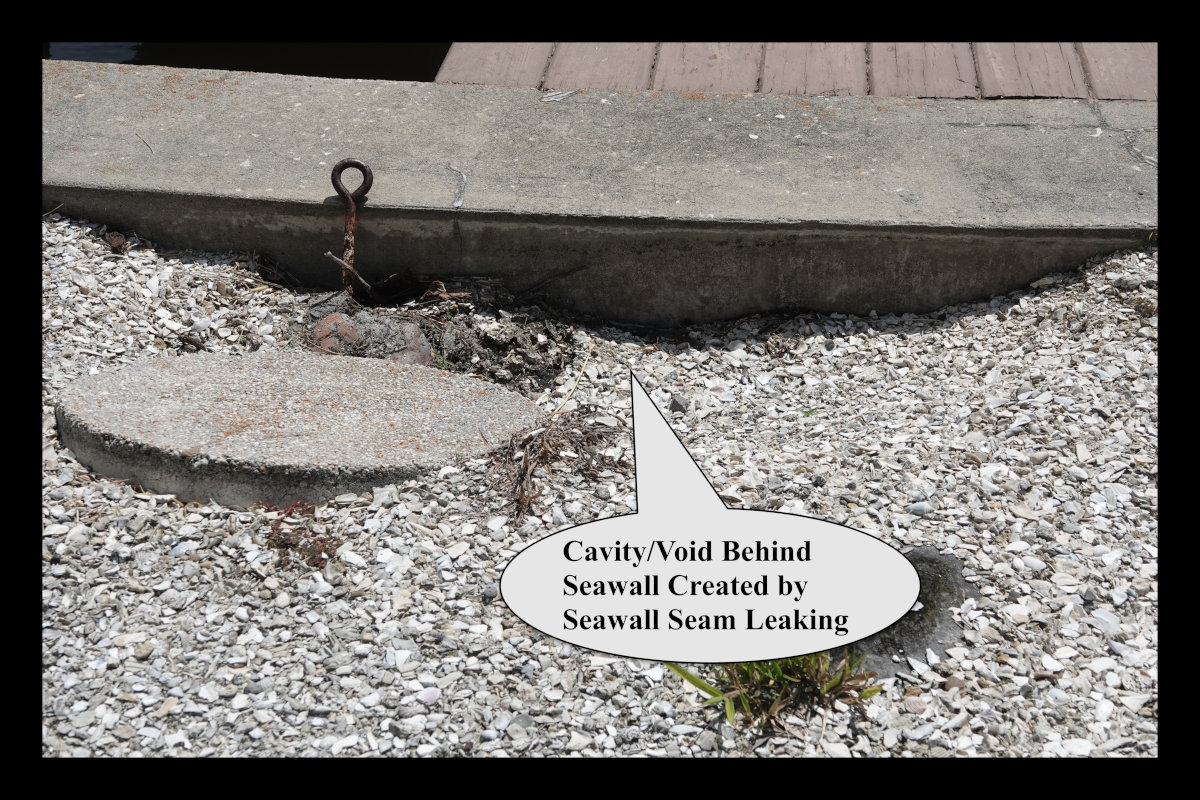

Cavity Void behind Seawall

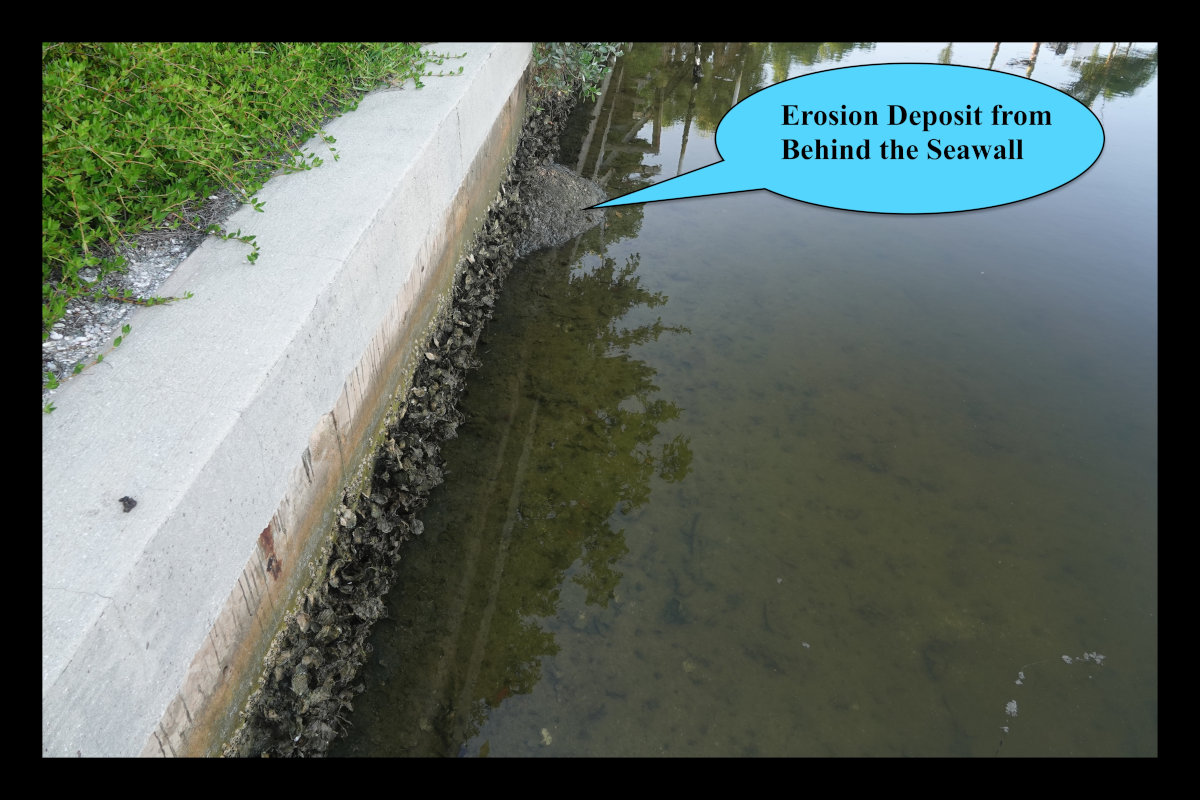

Erosion Deposit

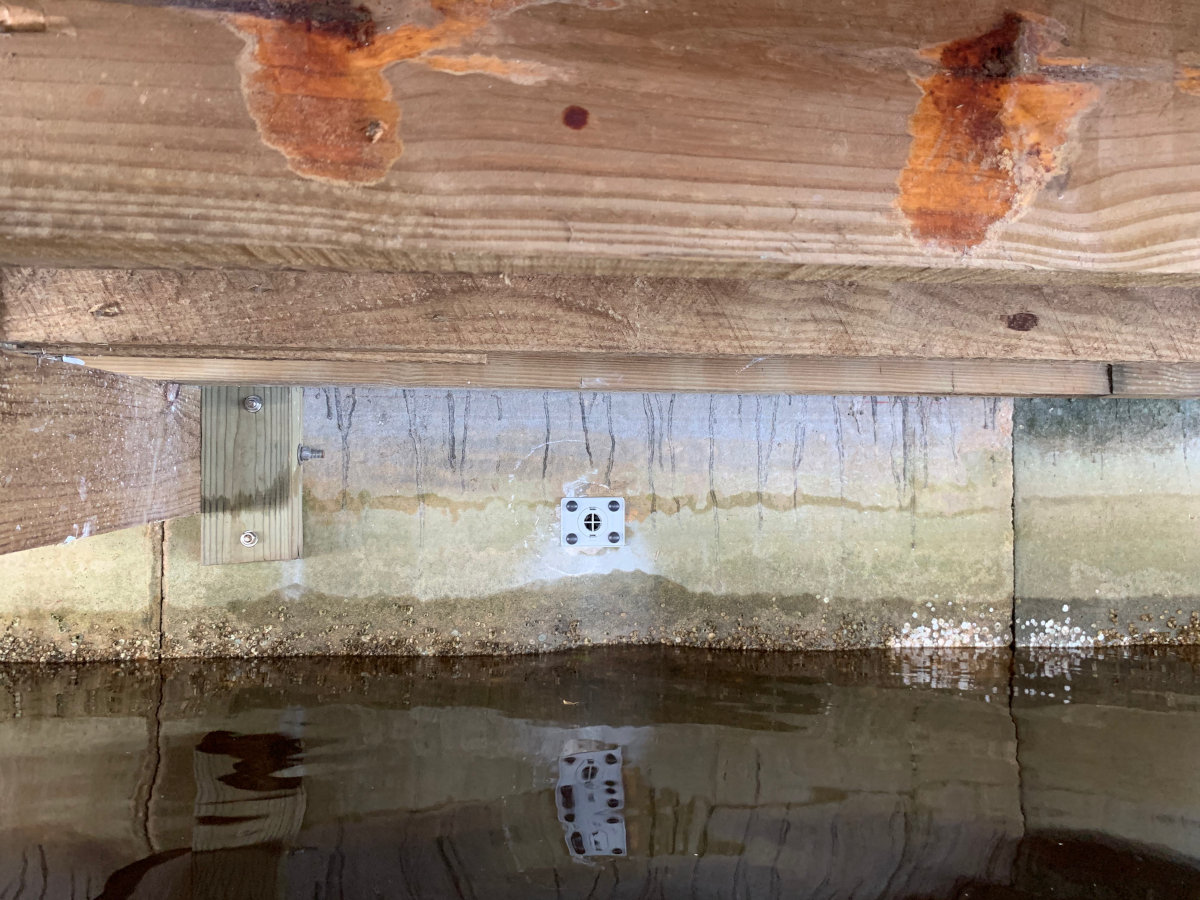

Concrete Seawall Drainage

Introduction

Seawall Erosion Challenges and Innovative Solutions

Seawall erosion poses a critical challenge for coastal properties, particularly in dynamic environments like Manasota Key. This case study of Admiralty Villas explores the significant seawall erosion issues faced, the innovative repair methods employed by Seawall Savers, and the successful outcomes achieved.

Financial Results and Benefits of Seawall Repair

The innovative repair methods yielded substantial improvements. The seawall repair process saved the association the replacement cost of a new seawall. This aspect presents the association to place more money on a escrow account for future seawall replacement.

  • Effective Erosion Control: The combination of Jet Filters and foam grout significantly reinforced the seawall.
  • Minimal Environmental Disruption: The repair process was clean and efficient, avoiding heavy machinery.
  • Extended Lifespan: The seawall’s durability was enhanced, reducing maintenance needs and costs.

Detecting Seawall Erosion Challenges at Admiralty Villas

The seawall at Admiralty Villas, a prominent condominium community on Manasota Key, encountered severe erosion issues. Key problems included:

  • Voids and Depressions: Significant gaps behind the concrete panels compromised structural integrity.
  • Panel Separation: Separations between concrete panels allowed soil escape, further destabilizing the seawall.
  • Environmental Stressors: Saltwater corrosion, and tidal changes exacerbated seawall degradation.

Implementing Innovative Seawall Repair Solutions

To combat the erosion, Seawall Savers™ implemented cutting-edge repair techniques:

  • Seam Stabilization: Plastic braces were placed at panel seams to reinforce weakened sections.
  • JET Filter System: Core-drilled holes and flush-mounted filters managed drainage and hydrostatic pressure.
  • Polyurethane Foam Grout: SW-RP1 foam stabilized soil and sealed seawall seams, offering a durable, effective repair solution.

Advanced Solutions for Coastal Seawall Repair

The repair strategy involved seawall repair innovations:

  • JET Filters: Installation of forty-two filters enhanced drainage and stability.
  • Foam Grout Injection: Approximately 550 gallons of SW-RP1 foam sealed seams and stabilized the seawall.
  • Permeation Grouting: Performed forty-five injections behind seawall panels to fill cracks and voids, improving structural integrity.

At Seawall Savers™, we specialize in sustainable, innovative seawall repair solutions designed to extend the life of coastal properties. Our experienced team uses premium materials and proprietary methods to deliver cost-effective, durable results that protect your investment against erosion and environmental challenges.

Frequently Asked Questions (FAQ)

What causes seawall erosion at coastal properties like Admiralty Villas?

Seawall erosion is primarily caused by natural factors such as tidal action, storm surges, saltwater corrosion, and soil erosion behind the seawall. These forces gradually weaken the structure and can lead to voids, cracks, and panel separations.

How do Jet Filters help in seawall repair?

Jet Filters are maintainable weep hole filters installed in the seawall to manage drainage and control hydrostatic pressure. By allowing water to drain without letting soil escape, they prevent erosion behind the seawall and increase overall stability.

What is polyurethane foam grout, and why is it used?

Polyurethane foam grout is a flexible, durable material injected into voids and seams to stabilize soil and seal cracks. It expands and hardens, providing structural support while minimizing environmental impact during repair.

How long does the seawall repair process usually take?

Repair duration depends on the severity and size of the project. For Admiralty Villas, the repair process was completed efficiently with minimal disruption, typically within a few weeks depending on conditions.

Is this repair method more cost-effective than replacing the seawall?

Yes. Innovative repair techniques like Jet Filters and polyurethane foam grout can extend the life of an existing seawall, often saving 25-50% compared to full seawall replacement costs.

Will the repair process disrupt my daily life or landscaping?

Seawall Savers uses non-invasive methods that reduce heavy machinery use, minimizing disruption to daily activities and preserving landscaping and local ecosystems.
